Form and Function

An excellent sauna is a fusion of design and engineering — aesthetics and physics. It doesn’t matter how beautiful a sauna looks if the benches are too low, the ceiling shape is off, or the ventilation isn’t right. A good-looking sauna with cold feet, stale air, or uneven heat is just a fancy shed you’ll eventually stop using.

But when these details are dialed in — when the heat envelops you evenly, the air feels fresh, and the space invites you to stay — something shifts. It becomes a place of ritual, of connection, of restoration. A space you and your loved ones will return to for decades.

No customization has been created for this 3D model.

You can create a customization now by clicking here

(Don't worry! Your customers will not see this error message on your store www.svanasauna.com.)

LOADING 3D CONFIGURATOR

3D Configurator

Customize

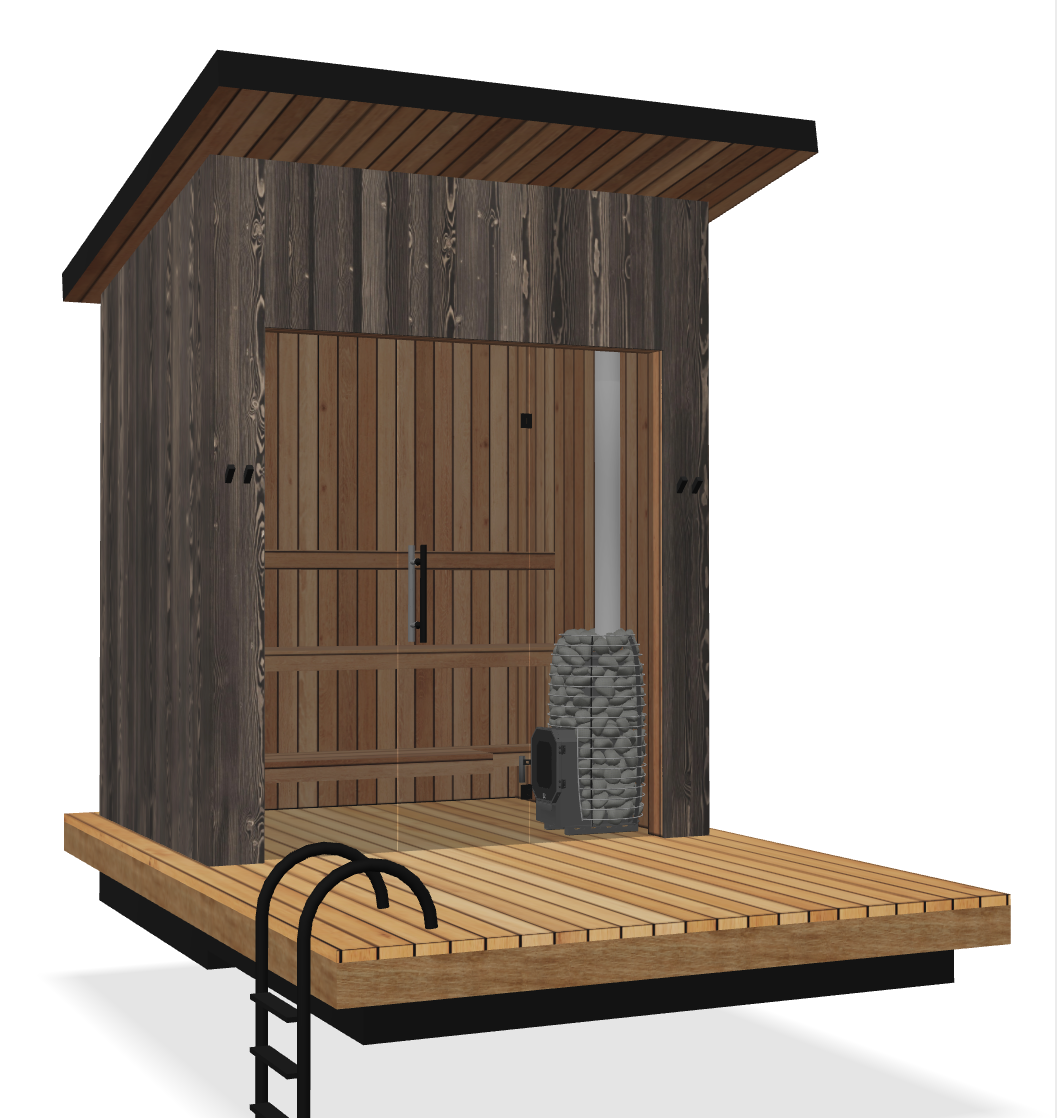

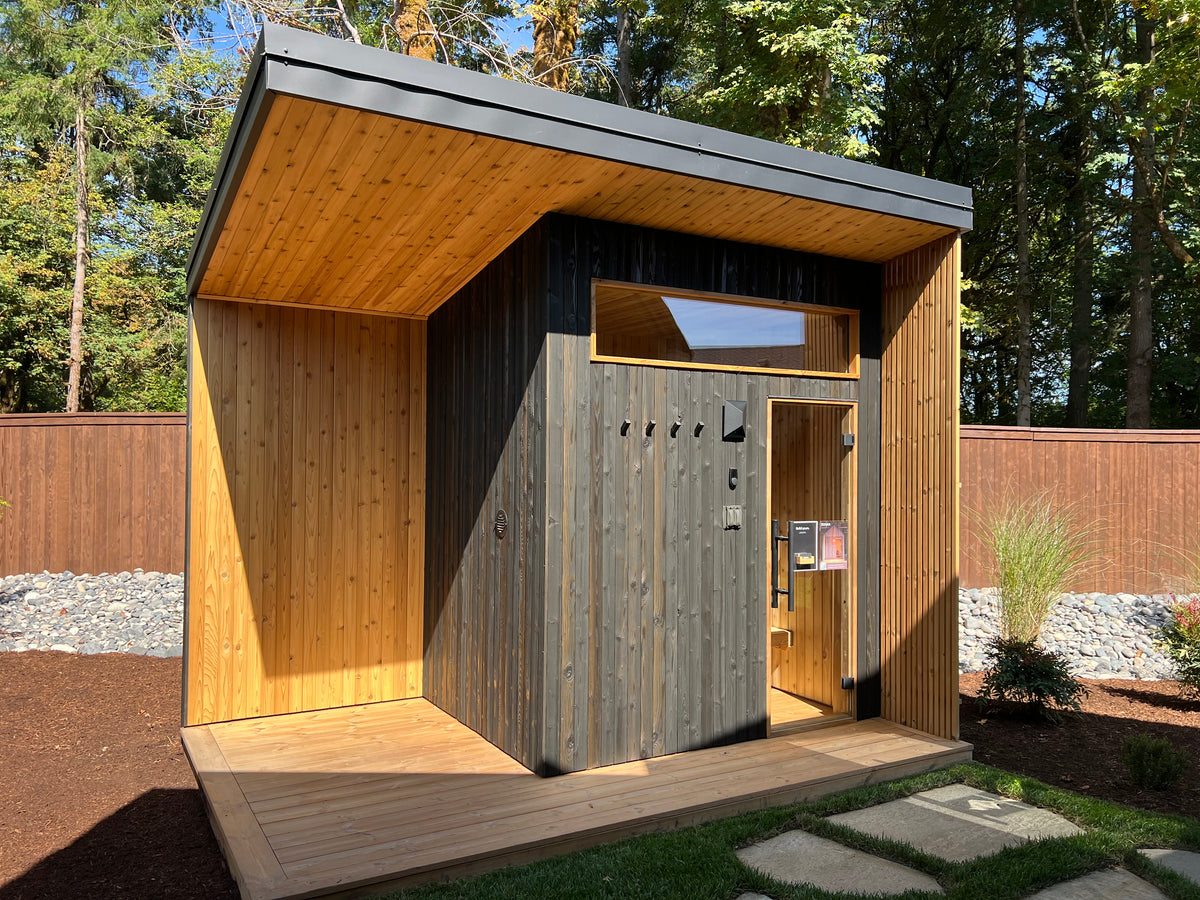

Sol means sun in Finnish, and this beautiful, modern Scandinavian sauna was designed to face the dawn. With a clean roofline and minimalist silhouette, it’s built to complement natural surroundings while inviting in the morning light.

Every detail is crafted for performance: high benches and ceiling so your whole body is above the rocks, a heat pocket above the door for thermal efficiency, and a quiet mechanical ventilation system that keeps air fresh.

This isn’t a kit or a barrel — it's the opposite. Sol is the result of hands-on craftsmanship and deep attention to the invisible details that make a sauna truly exceptional.

Sol Sauna Specs

Heat

  • HUUM Drop 9kW heater with UKU WiFi controller
  • 120 lbs of thermal mass for even, radiant heat
  • Preheat your sauna remotely from the app — whether you're just waking up or heading home from work

Ventilation

  • Mechanical ventilation system with WiFi and automatic on/off function
  • Reduces CO₂ buildup and temperature stratification for a more comfortable, breathable sauna experience
  • Manual intake and exhaust vents allow fine-tuning, or adjust fan settings directly from the controller or app

Interior Design

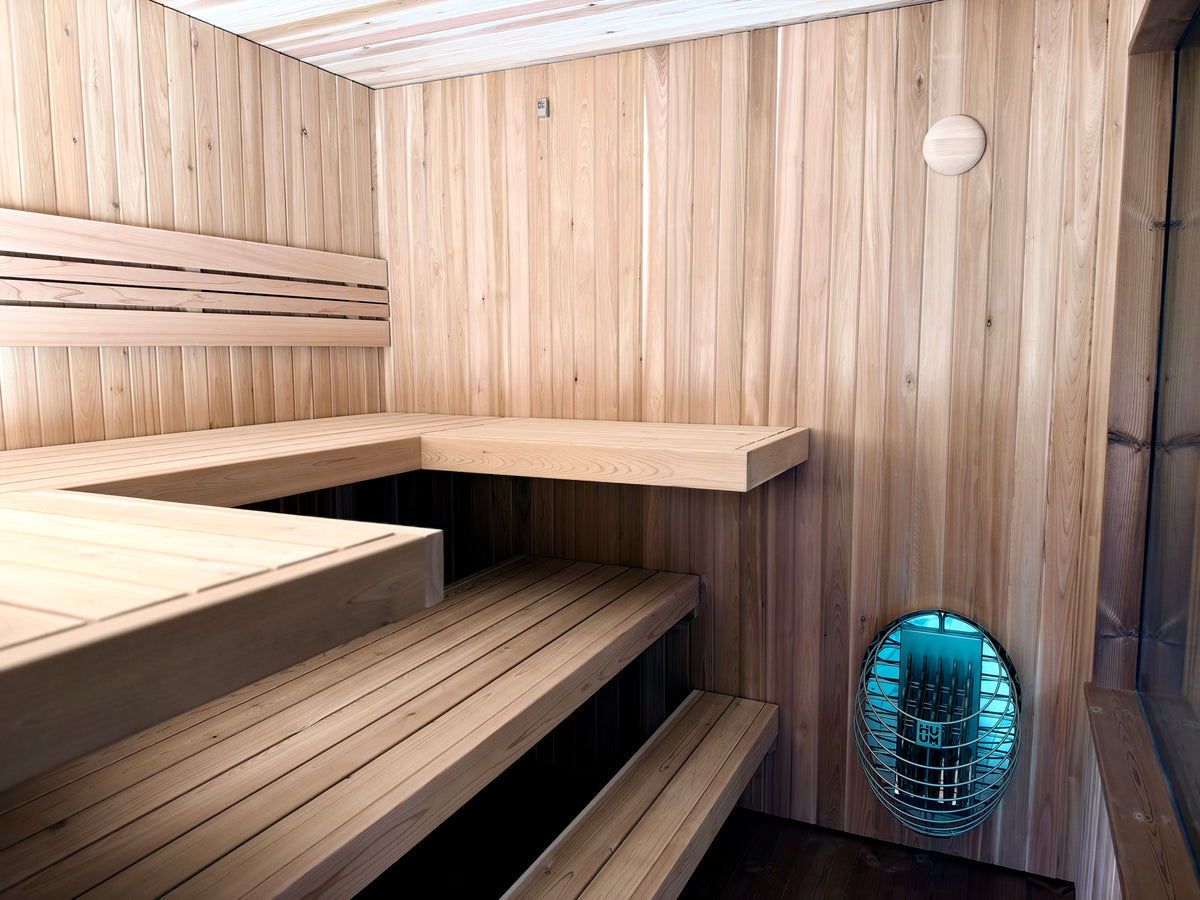

  • High benches and tall ceiling ensure feet are above the rocks — the first rule of proper löyly
  • The ceiling shape is designed to lower and redirect the heat pocket over the window, optimizing heat distribution toward the bench area
  • Benches are constructed from 2x4 western red cedar with hidden fasteners for a clean, refined finish

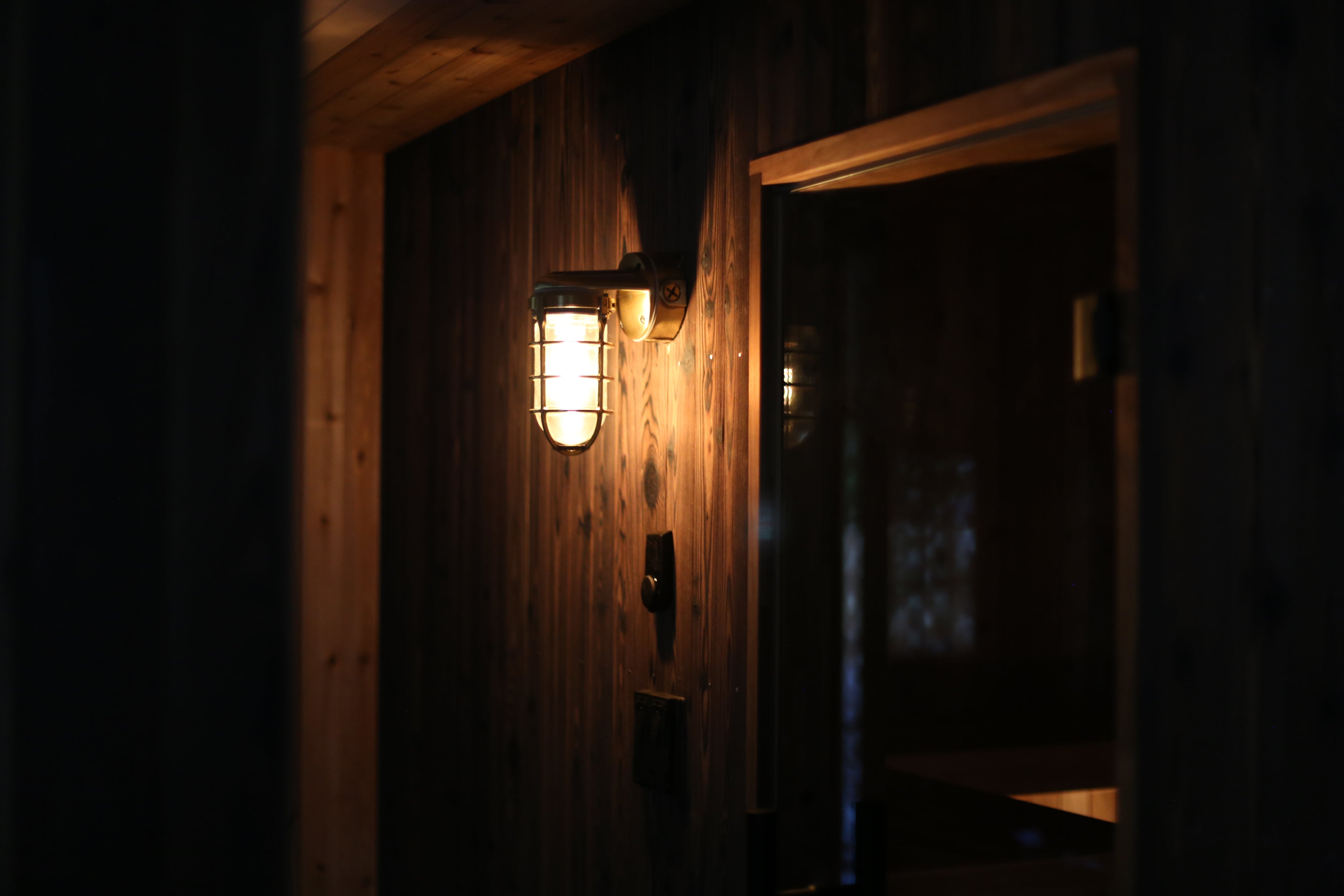

  • Dimmable bench and exterior lighting for a calm, customizable atmosphere

Window Options

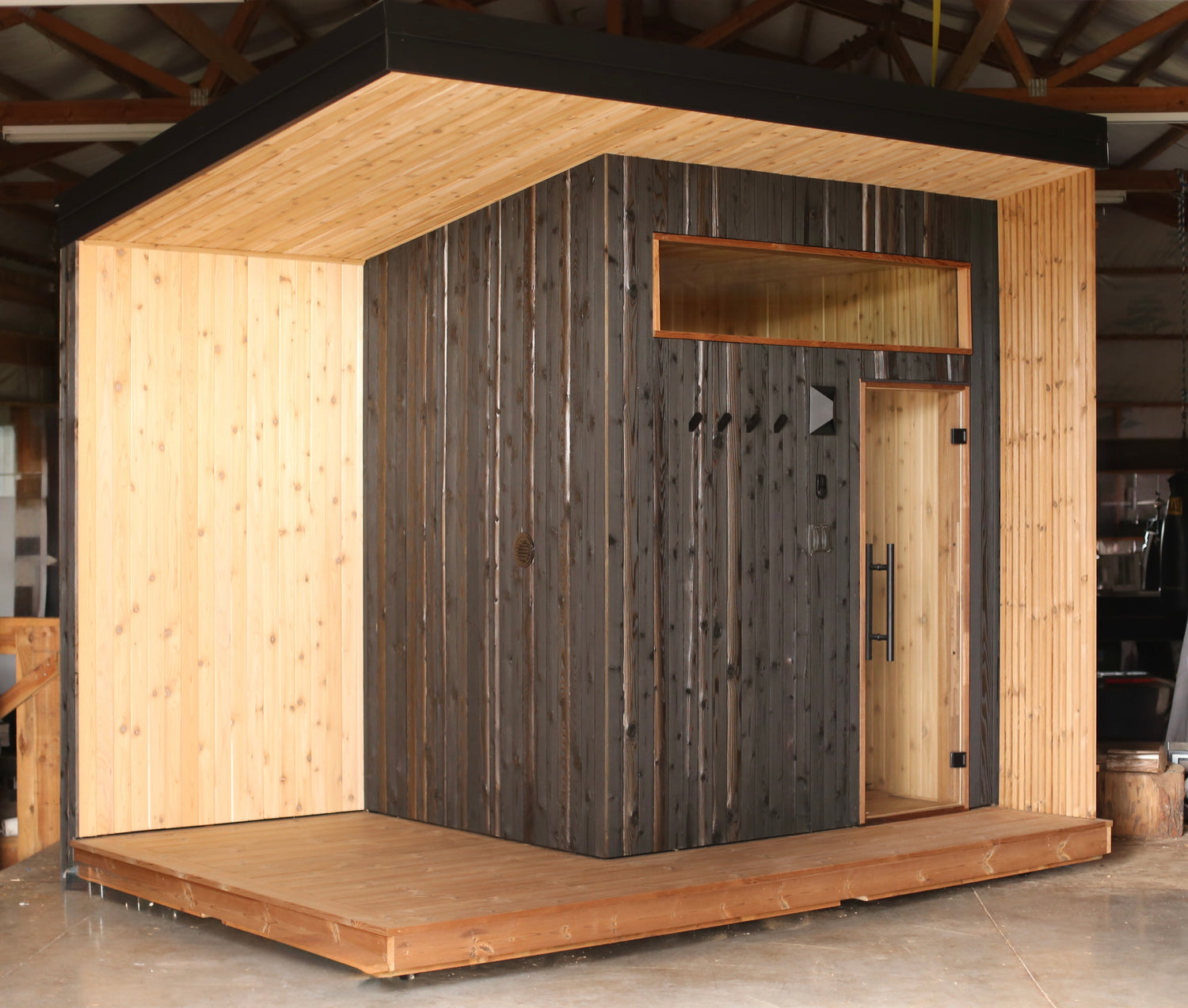

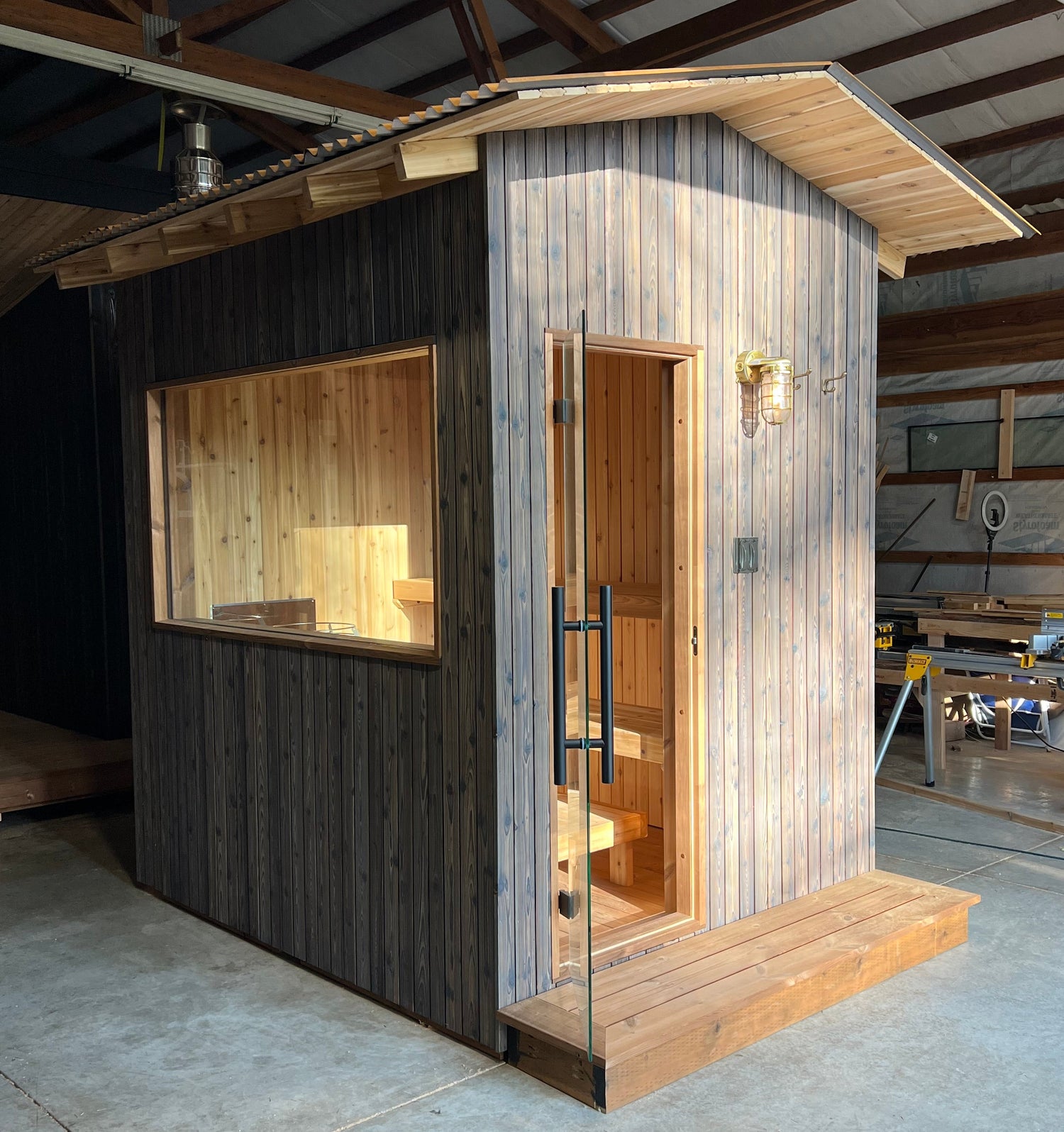

  • Door + Window Option: 6'2" glass door paired with a horizontal 6' x 2' double-pane, Low-E tempered glass window above the door

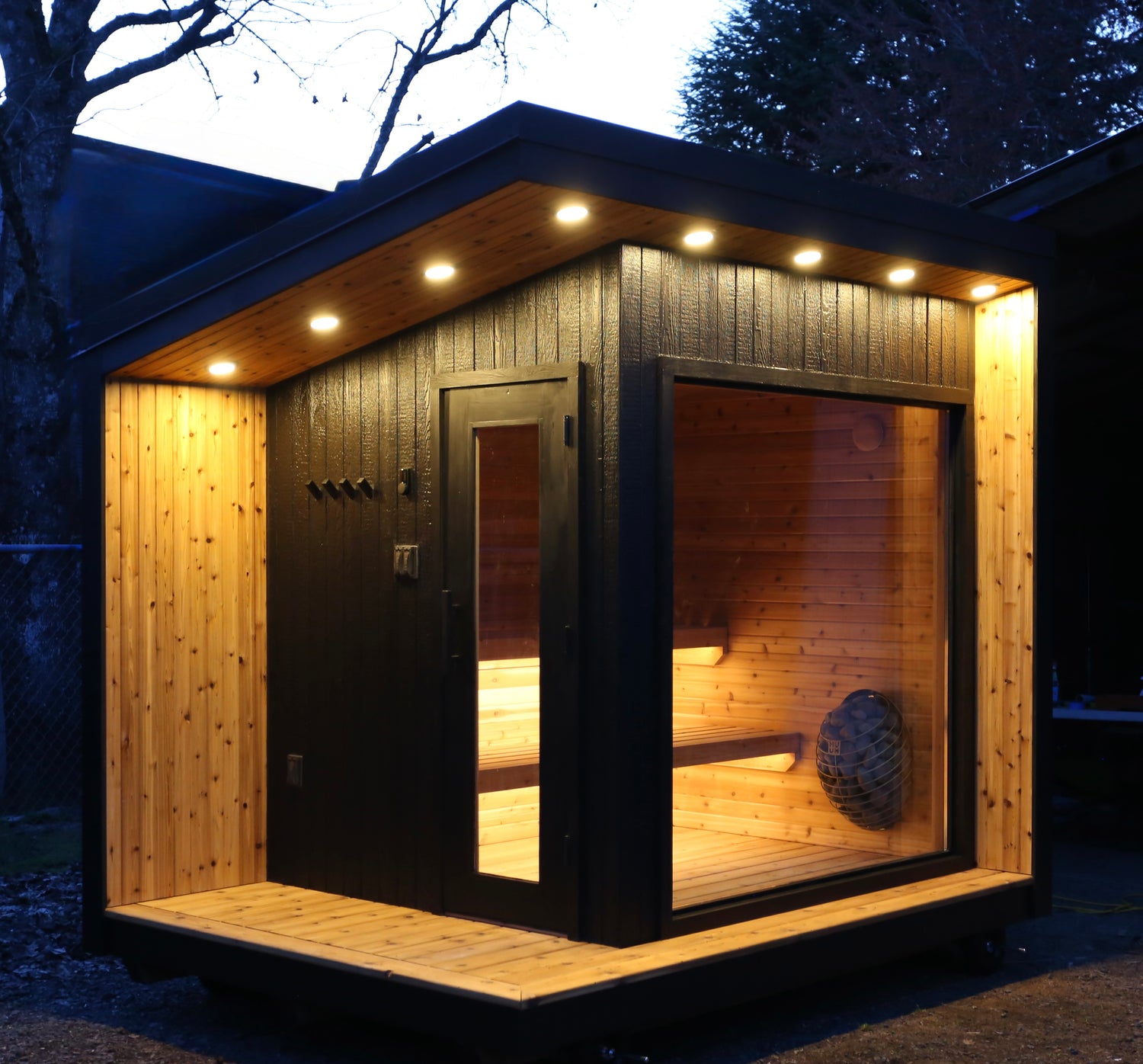

  • All-Glass Front Option: Expansive 6' x 7' wall of 1/2" tempered glass for full immersion in your surroundings

Construction

  • 7" thick insulated walls with mineral wool, foil vapor barrier, and ventilated air gap
  • Standing seam metal roof built to withstand decades of weather
  • This is not a kit — every unit is hand-built with precision and care

Footprint & Features

  • Sauna base: 7.5' x 6'
  • Full footprint with porch: 12' x 8'
  • Hot room interior: 6'7" along the bench wall, 5' on the heater wall
  • Interior ceiling height: 8' / Overall structure height: 10.5'

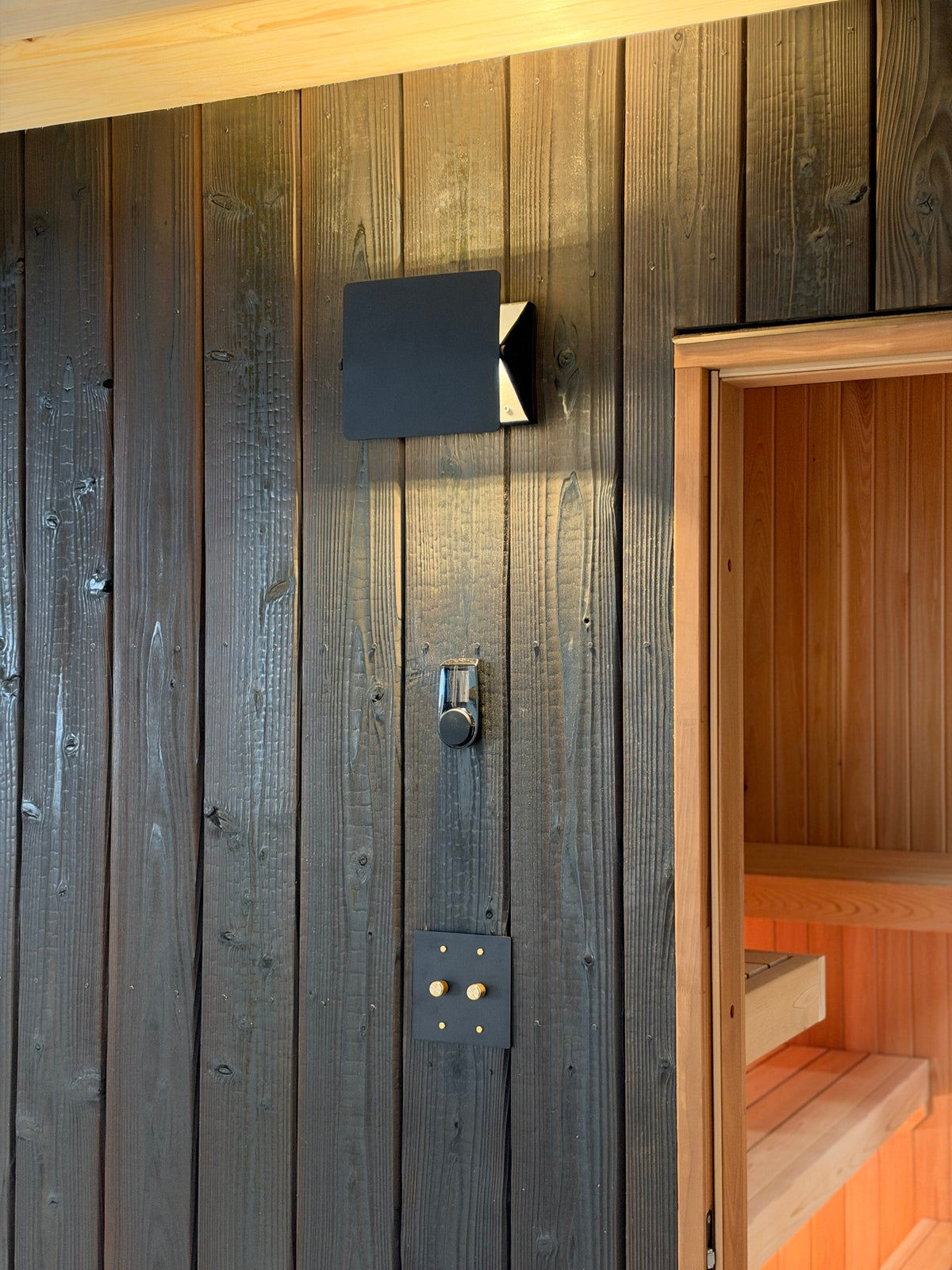

  • Porch includes: sauna controls, GFCI outlet with USB ports, light dimmer, and towel rack

    Built in Portland, Oregon. Current lead time: 8–12 weeks.

Cold Plunge Specs

Shower Specs

Exterior Shower

  • Matte black finish
  • 304 stainless steel construction
  • Cold water only
  • Designed for simplicity and durability, this outdoor shower connects directly to a standard hose via an exterior spigot on the sauna wall—no additional plumbing required. In freezing temperatures, the hose and shower must be drained or insulated to prevent damage.

Burned and Brushed vs Yakisugi

Burned and Brushed Cedar

This finish begins with a light surface burn that darkens the spring wood while leaving the grain a warm, contrasting tone. The boards are then brushed, rinsed, and sealed with a natural oil. Over time, this siding will develop a soft gray patina. To maintain the original rich wood tone, you can reapply oil every one to two years, though no upkeep is strictly required.

Yakisugi Cedar (Shou Sugi Ban)

Yakisugi is a traditional Japanese technique where the wood is deeply charred until the surface resembles alligator skin. After brushing and rinsing, it’s sealed with Scandinavian pine tar for a deep matte black finish. This treatment is highly durable and low maintenance, designed to stay black for up to a decade with minimal care.

Both siding options are installed with visible face nails to allow the wood to expand and contract naturally with changes in temperature and humidity. Over time, some nails may need to be tapped back into place as the wood subtly shifts.retightened.

Warranty

Every Svana sauna is built with care, precision, and premium materials. We stand behind that craftsmanship with a 3-year warranty covering any manufacturing defects in materials or workmanship.

If any issue arises within that period, we’ll repair or replace the affected part at no cost to you. After three years, we’re still here — and we’ll do our best to help troubleshoot and resolve any problems, even if they fall outside the warranty window.

Our goal is simple: to make sure your sauna continues to bring you peace of mind, restoration, and reliable performance for many years to come.

For full warranty details or to initiate a claim, just reach out — we’re easy to get in touch with and always happy to help.

No customization has been created for this 3D model.

You can create a customization now by clicking here

(Don't worry! Your customers will not see this error message on your store www.svanasauna.com.)

LOADING 3D CONFIGURATOR

3D Configurator

Customize

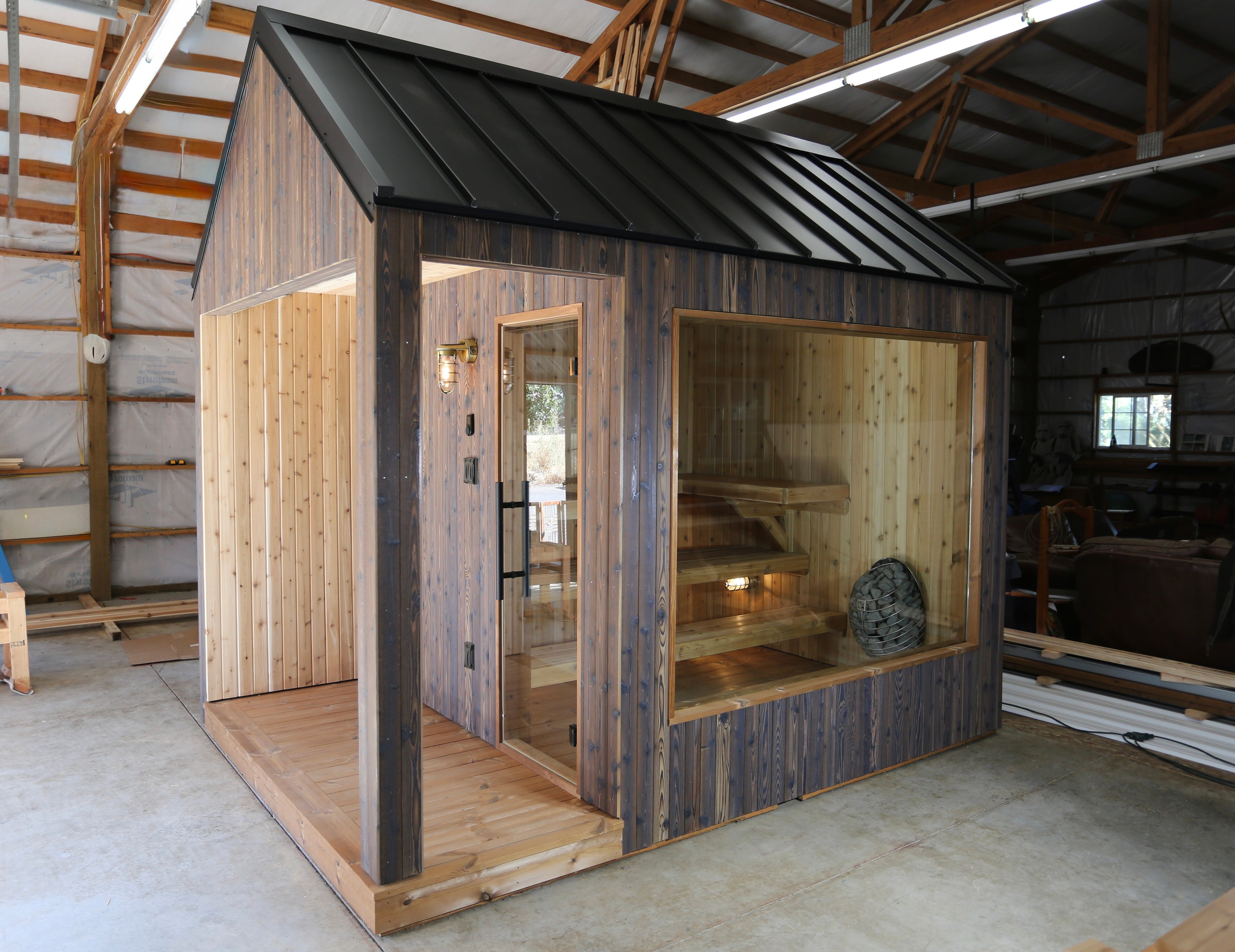

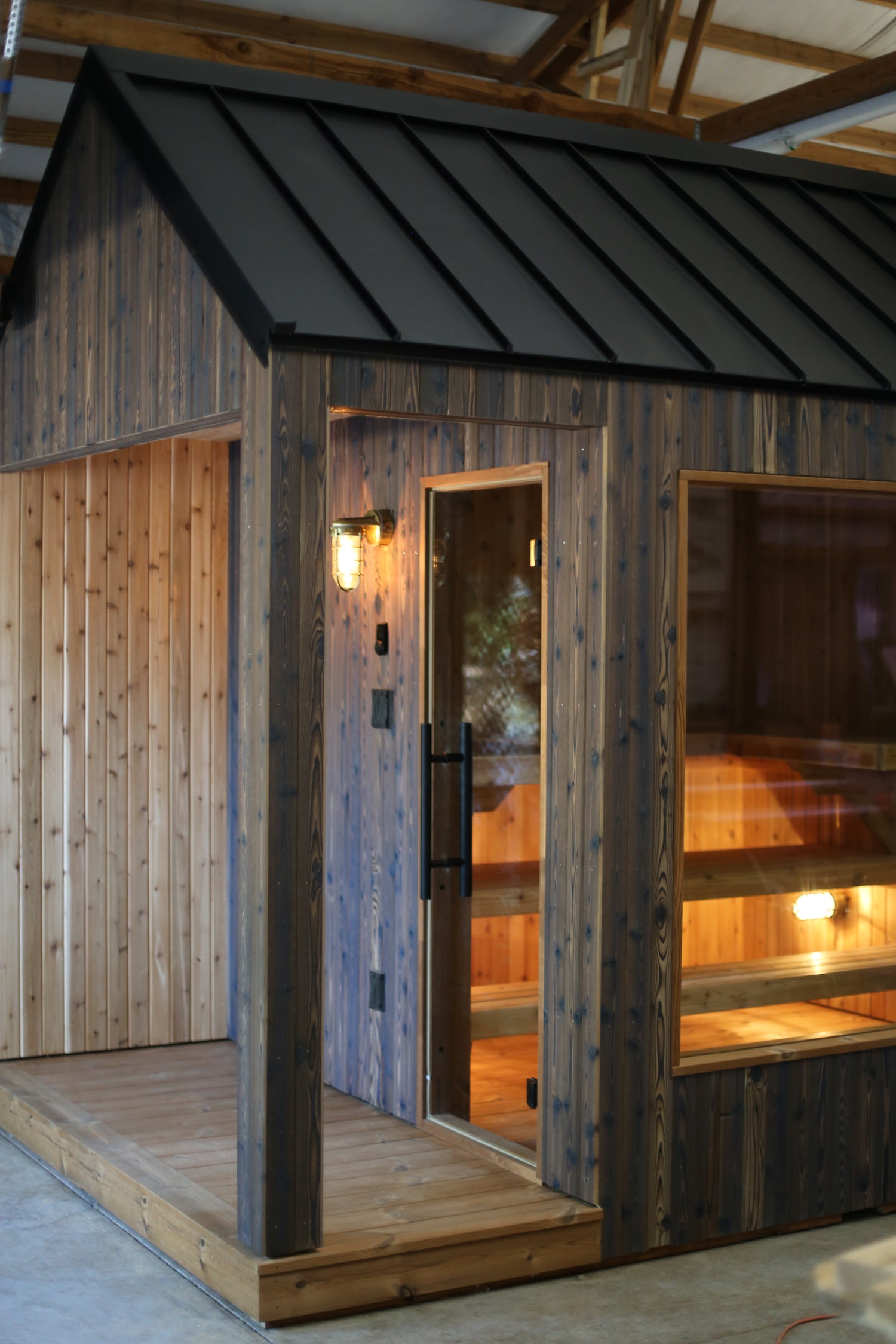

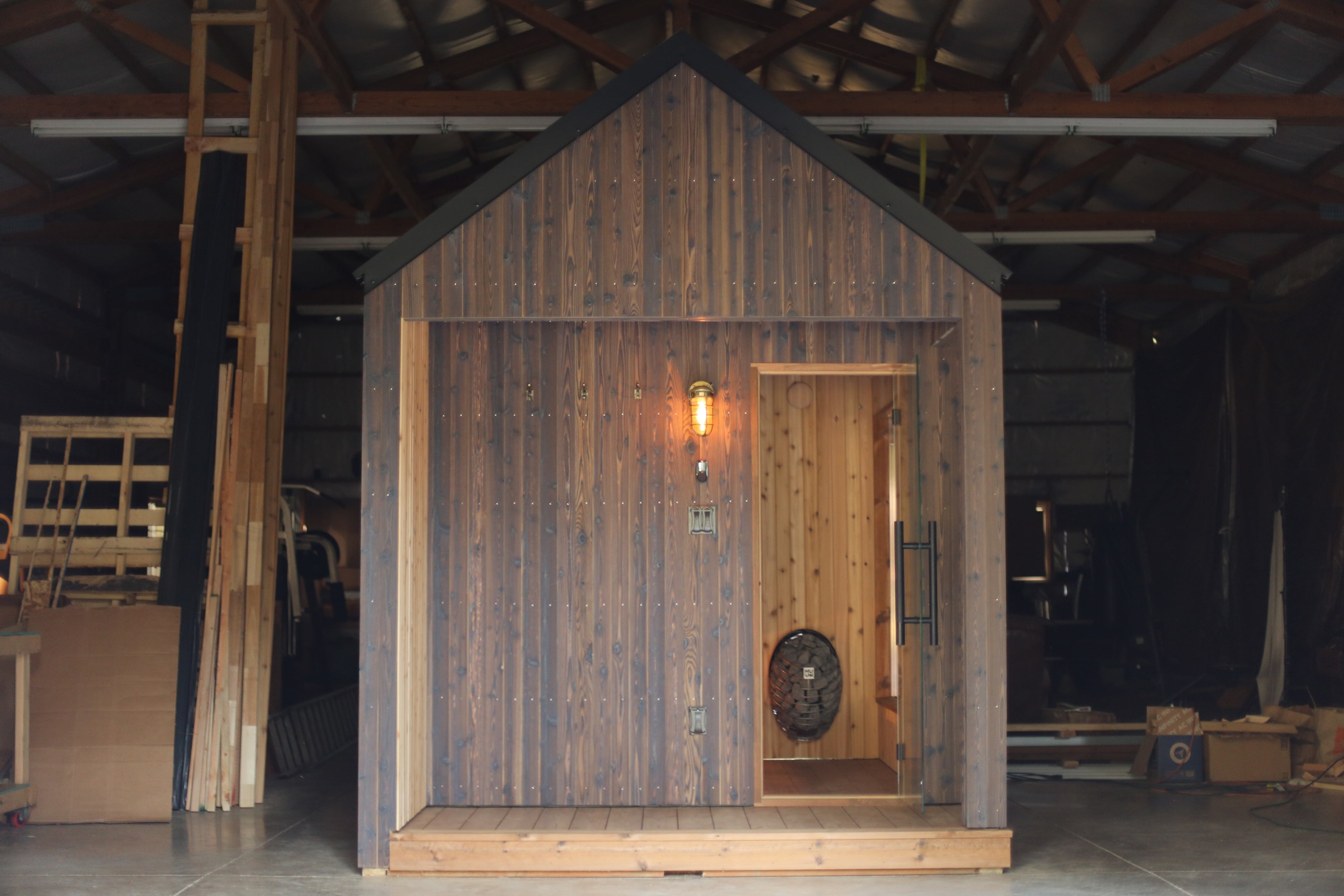

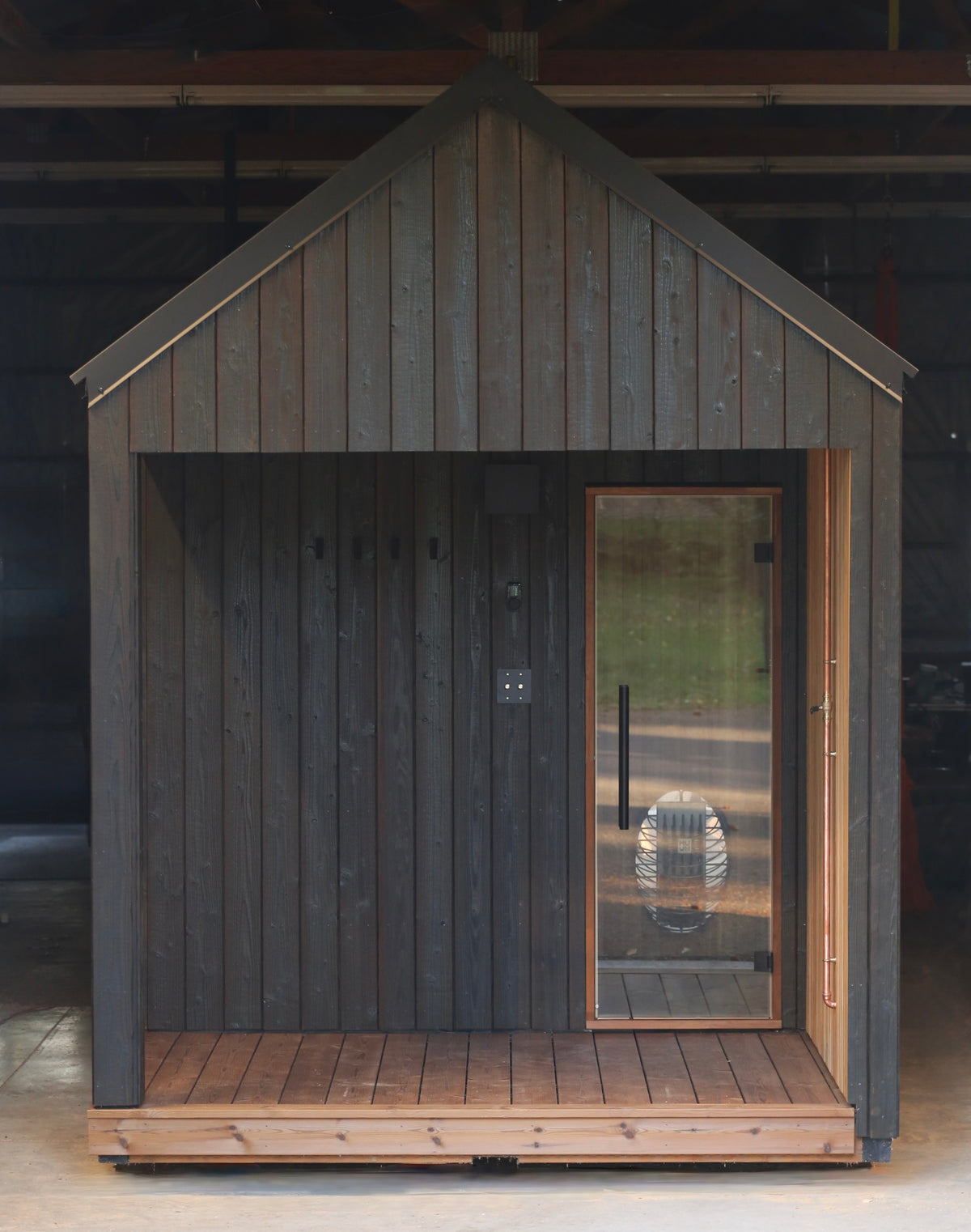

Norr means north in Finnish, and this design draws inspiration from the gable-roofed saunas and weathered fishing huts of the Scandinavian coast. With its classic silhouette and generous size, Norr feels timeless — grounded in tradition, built for modern life.

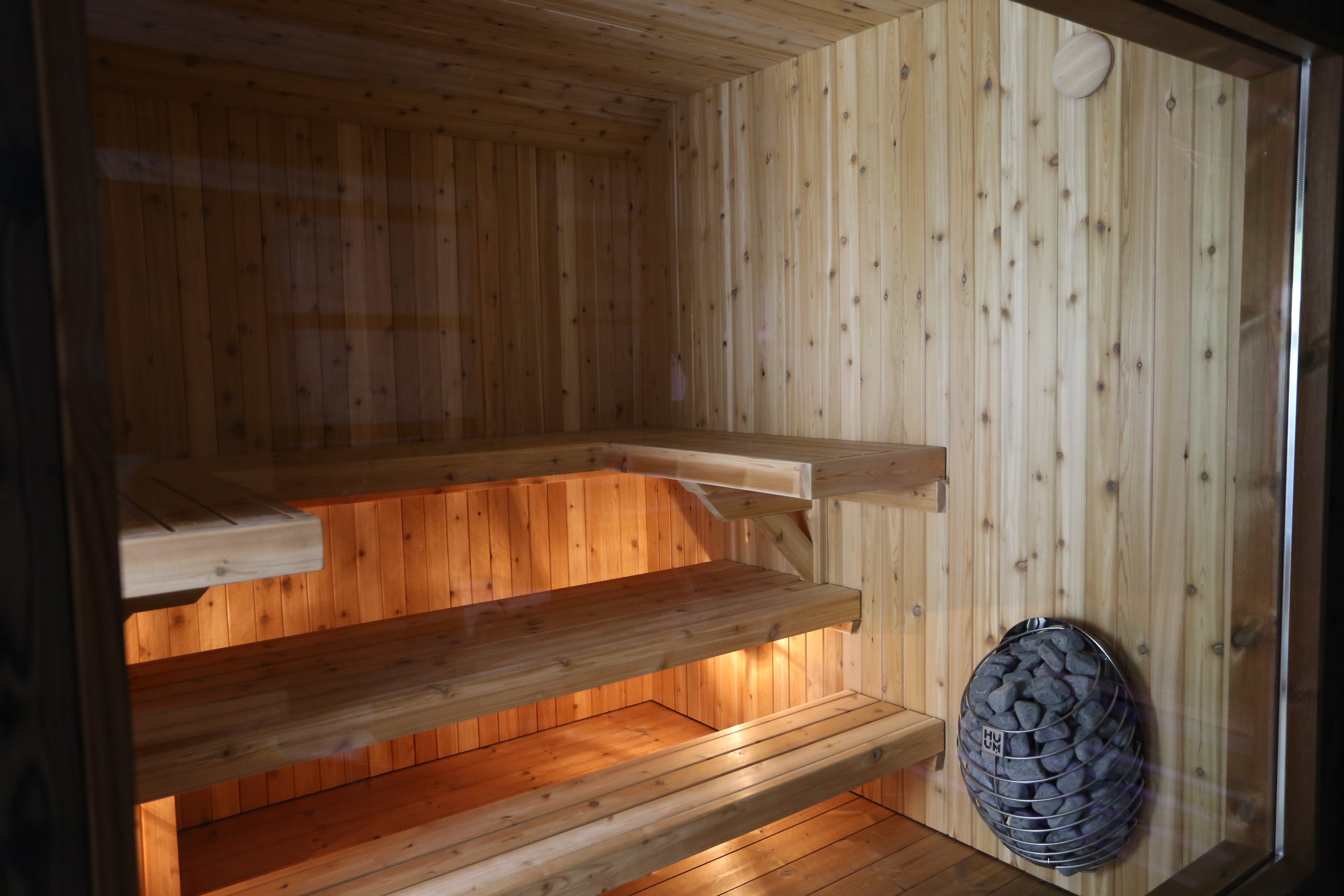

The spacious hot room radiates heat from all directions and comfortably seats up to six. High benches and ceiling allow your whole body to be above the rocks and the mechanical ventilation keeps the air fresh.

The black exterior option is finished in traditional Scandinavian pine tar, offering natural protection with a rich, matte tone to the Yakisugi cedar. An optional changing room adds flexibility — perfect for a cold plunge, a cool-down bench, or simply acting as an airlock for winter use, preserving heat in the hot room.

Norr Sauna Specs

Heat

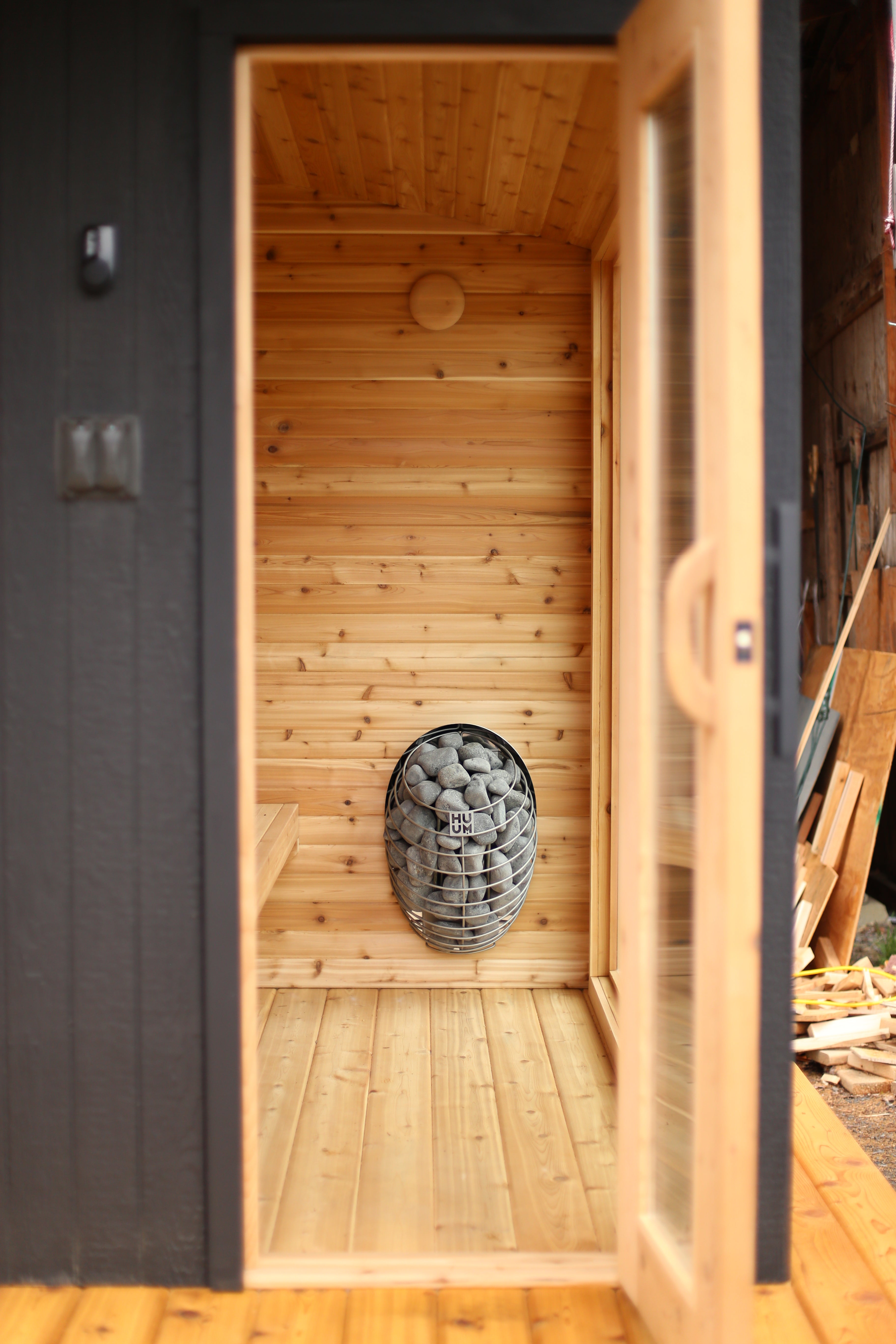

  • HUUM Drop 9kW heater with UKU WiFi controller
  • 120 lbs of thermal mass for rich, radiant heat
  • WiFi and app control for remote preheating and scheduling

Ventilation

  • Mechanical ventilation system with WiFi and auto on/off function
  • Fine-tuned airflow via manual intake and exhaust vents
  • Set-it-and-forget-it performance with programmable settings

Interior Design

  • High benches and raised ceiling ensure feet sit above the rocks — the first rule of proper löyly
  • Gabled exterior, interior the ceiling is flatter and designed to lower and distribute the heat pocket toward the seating area
  • Benches made from 2x4 western red cedar with hidden fasteners for a clean, refined finish
  • Dimmable interior and exterior lighting for customizable ambiance

Construction

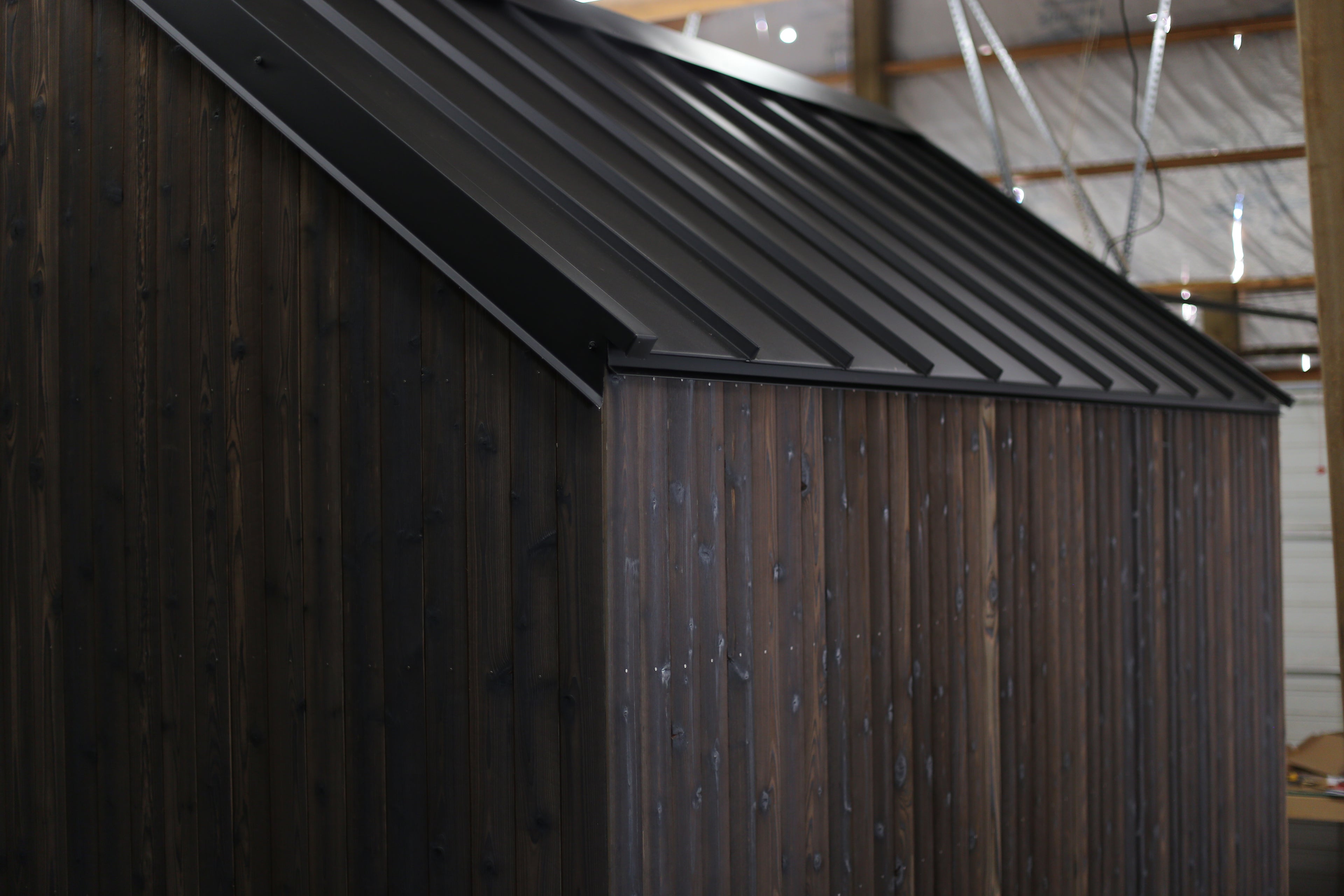

  • Standing seam metal roof designed to last for decades
  • 7" thick insulated walls with mineral wool, foil vapor barrier, and ventilated air gap
  • This is not a kit — each sauna is hand-built for performance and longevity

Footprint & Features

  • Sauna base: 8' x 8'
  • Full footprint with porch: 14' x 8'
  • Hot room interior: 7'2" x 7'2", with a 7.5' ceiling height
  • Porch includes: sauna controls, GFCI outlet with USB ports, light dimmers, and towel rack

    Built in Portland, Oregon. Custom saunas available in 8–12 weeks.

Cold Plunge Specs

Cold, Clean, Ready When You Are

Our cold plunge delivers perfectly chilled, crystal-clear water—no ice needed. With powerful U.S.-made chilling, advanced filtration, and chemical-free sanitation, it’s built for serious recovery, effortless maintenance, and daily use in any setting.

Just fill with a hose, set your temperature (as low as 35°F), and step into a new daily ritual. Whether indoors or out, at home or in a commercial space, this plunge is designed to elevate your experience.

Specs & Features:

  • Exterior Dimensions: 64” L x 31” W x 37” H
  • Tub Dimensions: 36″ L x 24″ W x 30″ H
  • U.S.-Made Chiller: Cools water to 35°F for true cold therapy
  • Durable Design: Built for both personal and high-demand commercial use
  • Whisper-Quiet Operation: Just 56 dBA—quiet enough for a peaceful reset
  • 3-Stage Filtration: Advanced system keeps water consistently clear
  • Chemical-Free Ozonator: Naturally purifies water without harsh additives
  • Low Maintenance: Designed for simplicity and ease of use

Shower Specs

Exterior Shower

  • Matte black finish
  • 304 stainless steel construction
  • Cold water only
  • Designed for simplicity and durability, this outdoor shower connects directly to a standard hose via an exterior spigot on the sauna wall—no additional plumbing required. In freezing temperatures, the hose and shower must be drained or insulated to prevent damage.

Burned and Brushed vs Yakisugi

Burned and Brushed Cedar

This finish begins with a light surface burn that darkens the spring wood while leaving the grain a warm, contrasting tone. The boards are then brushed, rinsed, and sealed with a natural oil. Over time, this siding will develop a soft gray patina. To maintain the original rich wood tone, you can reapply oil every one to two years, though no upkeep is strictly required.

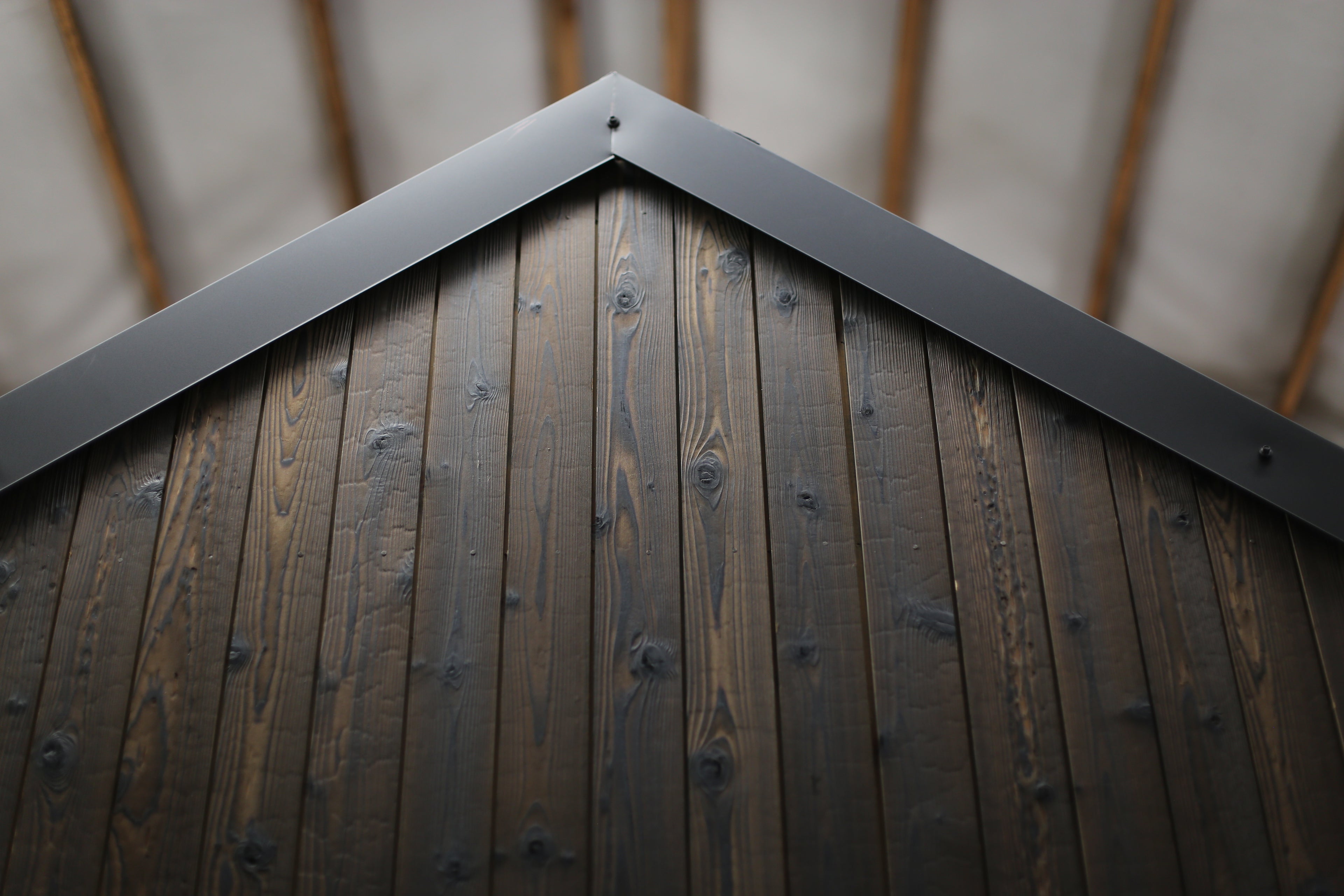

Yakisugi Cedar (Shou Sugi Ban)

Yakisugi is a traditional Japanese technique where the wood is deeply charred until the surface resembles alligator skin. After brushing and rinsing, it’s sealed with Scandinavian pine tar for a deep matte black finish. This treatment is highly durable and low maintenance, designed to stay black for up to a decade with minimal care.

Both siding options are installed with visible face nails to allow the wood to expand and contract naturally with changes in temperature and humidity. Over time, some nails may need to be tapped back into place as the wood subtly shifts.

Warranty

Every Svana sauna is built with care, precision, and premium materials. We stand behind that craftsmanship with a 3-year warranty covering any manufacturing defects in materials or workmanship.

If any issue arises within that period, we’ll repair or replace the affected part at no cost to you. After three years, we’re still here — and we’ll do our best to help troubleshoot and resolve any problems, even if they fall outside the warranty window.

Our goal is simple: to make sure your sauna continues to bring you peace of mind, restoration, and reliable performance for many years to come.

For full warranty details or to initiate a claim, just reach out — we’re easy to get in touch with and always happy to help.
